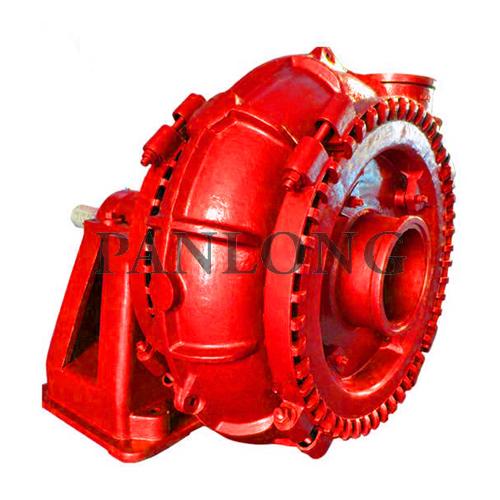

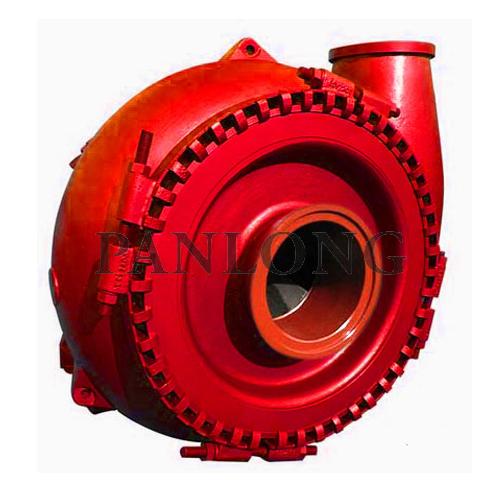

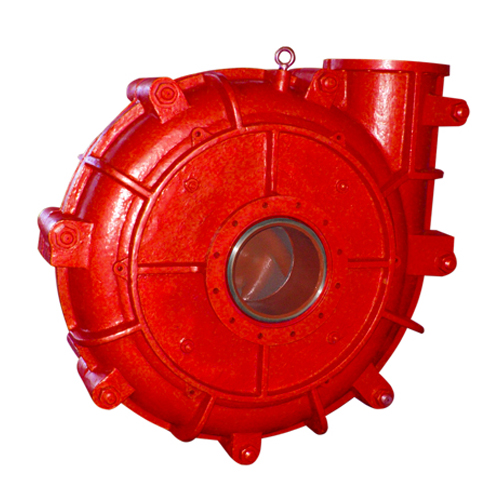

The Panlong PD,PG pump range is the world’s standard for dredge and gravel applications. The range provides excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. A wide variety of shaft seals provide a perfect fit for a wide range of applications.

Key features

Pass very large solids not capable of being pumped by Panlong PAH.

Applications

sand and gravel

hydraulic mining

sugar beet

root vegetables

slag granulation

tunneling

river and pond dredging

heavy refuse removal

large particle or low NPSHA applications

Specifications

Discharge Diameters 4” to 14” (100 mm to 350 mm)

Heads Through 230 ft (70 m)

Flow rates Through 12,000 gpm (2,700 m3/h)

Casing Pressure Tolerance 300 psig (2,020 kPa)

Materials

High chrome iron, Synthetic and natural rubber, Polyurethane, Corrosion resistant alloys
